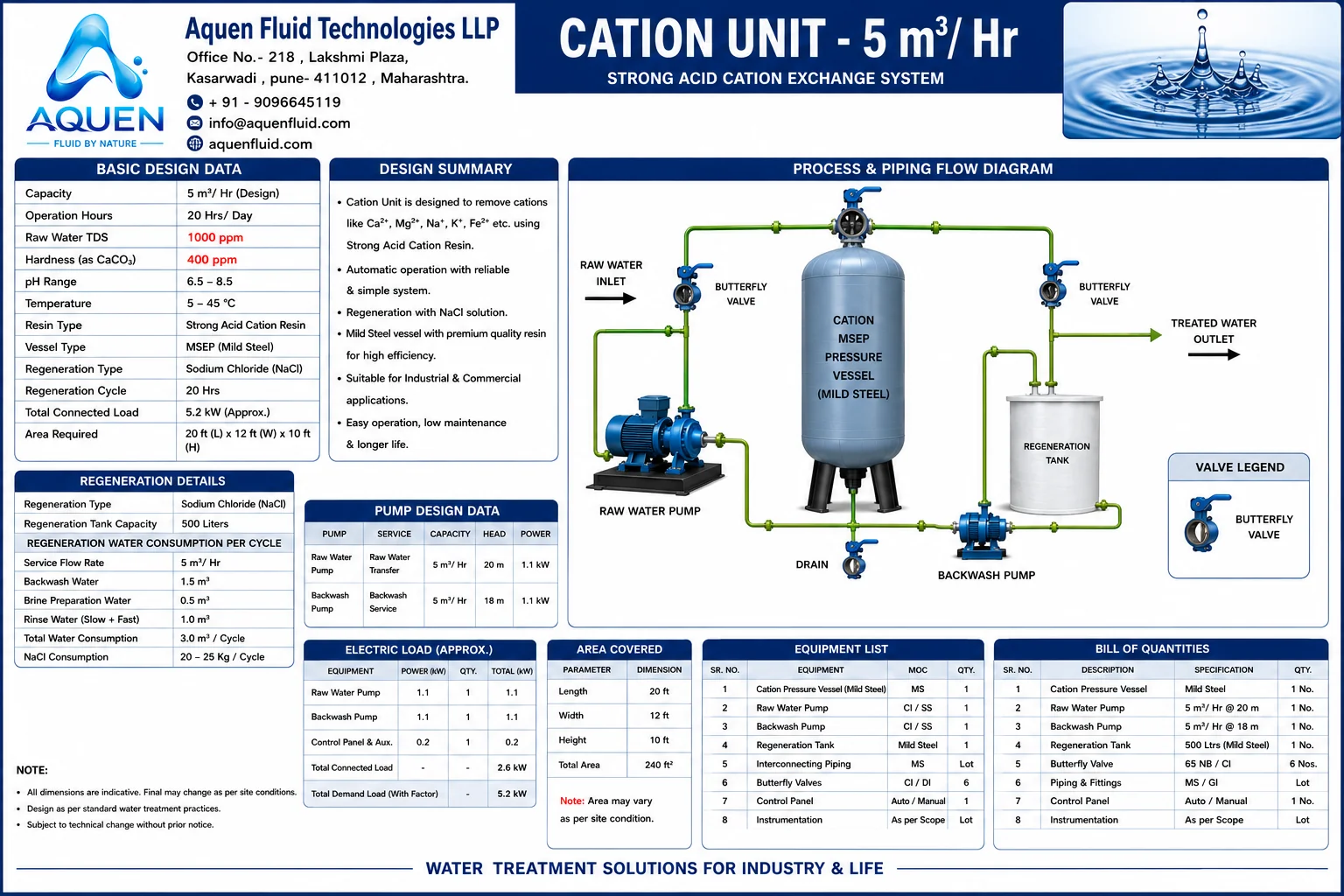

Cation Unit – 5 m³/Hr
Strong Acid Cation Exchange System
The Cation Unit is designed to remove dissolved cations such as calcium, magnesium, sodium, potassium and iron using strong acid cation exchange resin. It is typically used ahead of an anion exchange stage for demineralization, or on its own for softening and hardness reduction in industrial and commercial applications.
- Capacity
- 5 m³/Hr
- Raw Water TDS
- 1000 ppm
- Hardness
- 400 ppm as CaCO₃
- pH Range
- 6.5 – 8.5
- Temperature
- 5 – 45°C
- Resin
- Strong Acid Cation Resin
Engineered for Effective Cation & Hardness Removal
- Cation Unit is designed to remove cations like Ca²⁺, Mg²⁺, Na⁺, K⁺, Fe²⁺ etc. using Strong Acid Cation Resin.
- Automatic operation with reliable & simple system.
- Regeneration with NaCl solution.
- Mild Steel vessel with premium quality resin for high efficiency.
- Suitable for Industrial & Commercial applications.
- Easy operation, low maintenance & longer life.
Basic Design Data
| Capacity | 5 m³/Hr (Design) |
|---|---|
| Operation Hours | 20 Hrs/Day |
| Raw Water TDS | 1000 ppm |
| Hardness (as CaCO₃) | 400 ppm |
| pH Range | 6.5 – 8.5 |
| Temperature | 5 – 45°C |
| Resin Type | Strong Acid Cation Resin |
| Vessel Type | MSEP (Mild Steel) |
| Regeneration Type | Sodium Chloride (NaCl) |
| Regeneration Cycle | 20 Hrs |
| Total Connected Load | 5.2 kW (Approx.) |
| Area Required | 20 ft (L) x 12 ft (W) x 10 ft (H) |
Regeneration Details
Regeneration Type
Sodium Chloride (NaCl)
Regeneration Tank Capacity
500 Liters
Regeneration Water Consumption per Cycle
Service Flow Rate
5 m³/Hr
Backwash Water
1.5 m³
Brine Preparation Water
0.5 m³
Rinse Water (Slow + Fast)
1.0 m³
Total Water Consumption
3.0 m³ / Cycle
NaCl Consumption
20 – 25 Kg / Cycle

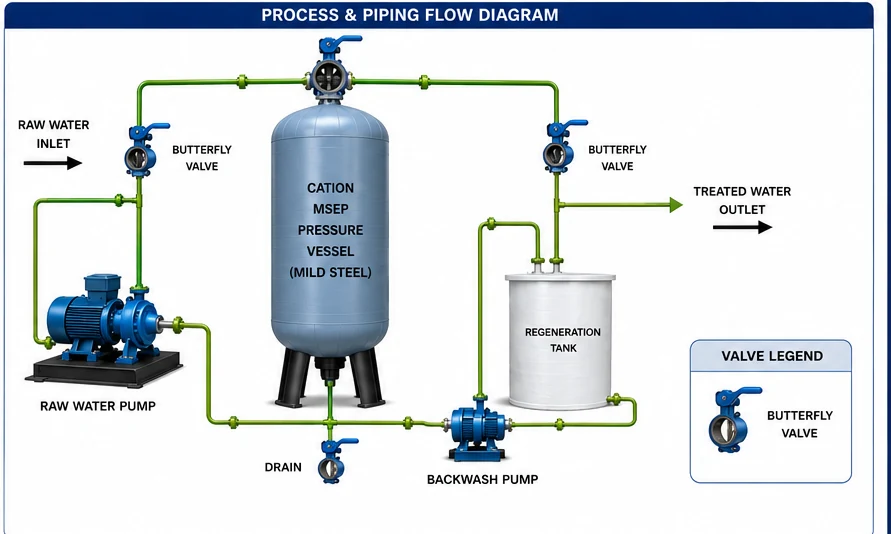

Process & Piping Flow
Full process and piping flow diagram for the Cation Unit, covering the service, dosing and backwash circuits.
Service Flow
Regeneration Circuit
Backwash Circuit
Pump Design Data
| Pump | Service | Capacity | Head | Power | Qty |
|---|---|---|---|---|---|
| Raw Water Pump | Raw Water Transfer | 5 m³/Hr | 20 m | 1.1 kW | 1 |
| Backwash Pump | Backwash Service | 5 m³/Hr | 18 m | 1.1 kW | 1 |
Equipment List
| Sr. | Equipment | MOC | Qty |
|---|---|---|---|
| 01 | Cation Pressure Vessel | Mild Steel | 1 No. |
| 02 | Raw Water Pump | CI / SS | 1 No. |
| 03 | Backwash Pump | CI / SS | 1 No. |
| 04 | Regeneration Tank | Mild Steel | 1 No. |
| 05 | Interconnecting Piping | MS / GI | Lot |
| 06 | Butterfly Valves | CI / DI | 6 Nos. |
| 07 | Control Panel | Auto / Manual | 1 No. |
| 08 | Instrumentation | As per Scope | Lot |
